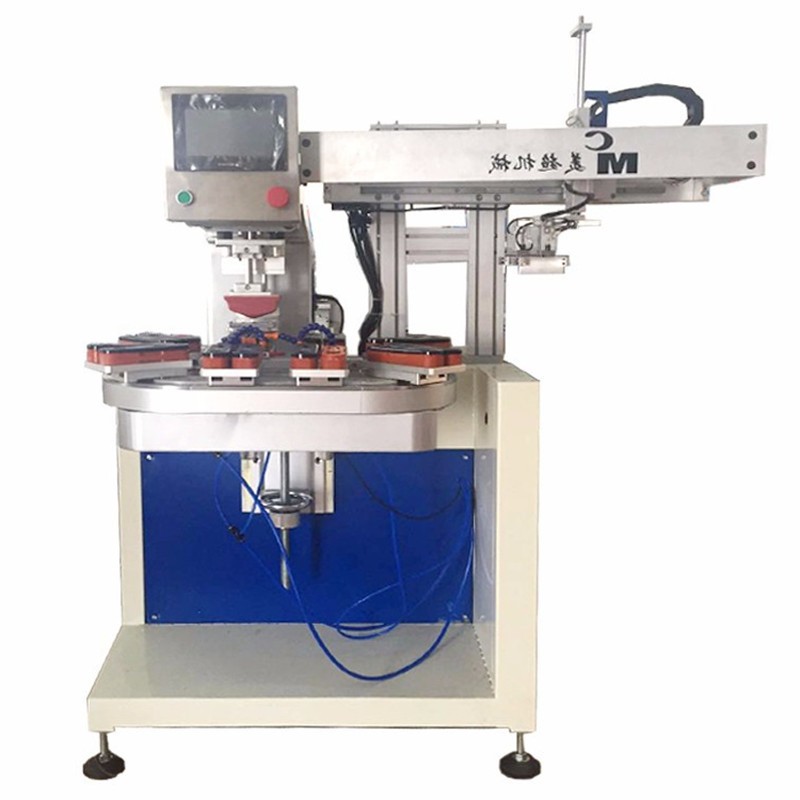

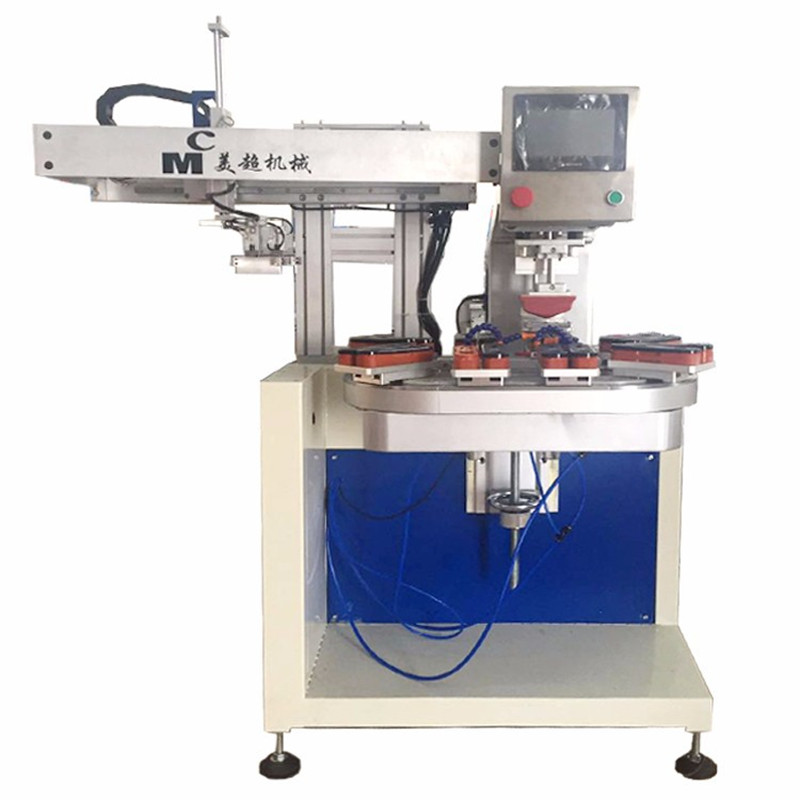

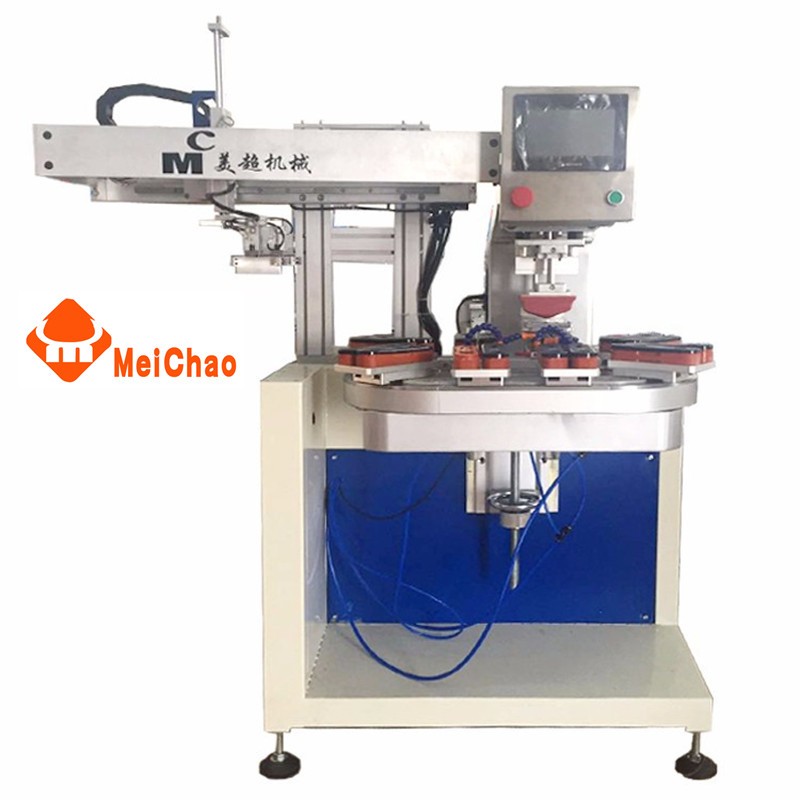

Full automatic multiple printing heads rotary or shuttle pad printing machine for customazation

Full automatic multiple printing heads rotary or shuttle pad printing machine for customazation

1.   specification

Model No.：MC-P2/CA

Printing Area：75*120mm

Printing speed：1600pcs/h

power：110/220V 50w

size: 86*95*135cm

weight：300KG

2.   Technology parameter

1.MCU IC compiler action program, a variety of printing mode selection

2. Automatic four-digit counter to count the number of prints

3. The position of workbench, glue head and oil cup can be adjusted by X.Y.Z axis

4. Oil cup design, environmental protection and prevent ink solidification

5. Unique fuselage design, easy to adjust and replace the steel plate

6. Maximum height of workpiece: 140mm

7. Steel plate size: 100*150mm

8. Glue head up and down stroke: 75mm

9. Front and back stroke of the Glue head: 160mm

10. Printing station 1 /2 optional (speed 1600pcs/h 3200pcs/h)

11. Manual feeding, mechanical hand feeding (can do automatic or manual loading and unloading)

12. The overall running speed is fast, stable and low noise

13.pneumatic method：panel/foot switch

14.Glue head fixing method: wood screw lock

15. Choose durable "Taiwan Silver" brand screw, guide rail simple oil cup assembly and disassembly, no need to move glue

16. The cutting manipulator adopts servo drive, digital input, and photoelectric detection of the machine is accurate

17. Adjustable printing speed to meet different printing requirements

18. The table can be lifted up and down to adapt to the printing of different workpieces

19. The body is cast with high quality aluminum alloy, light and durable

20.PLC computer program master, simple touch control interface

21. The whole machine is equipped with safety cover, safe and beautiful
