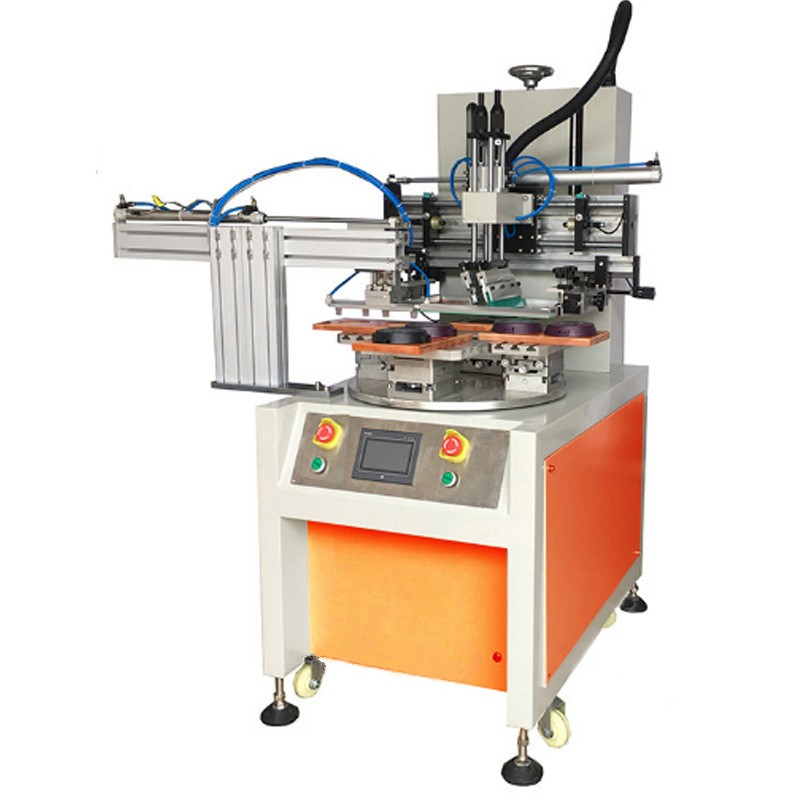

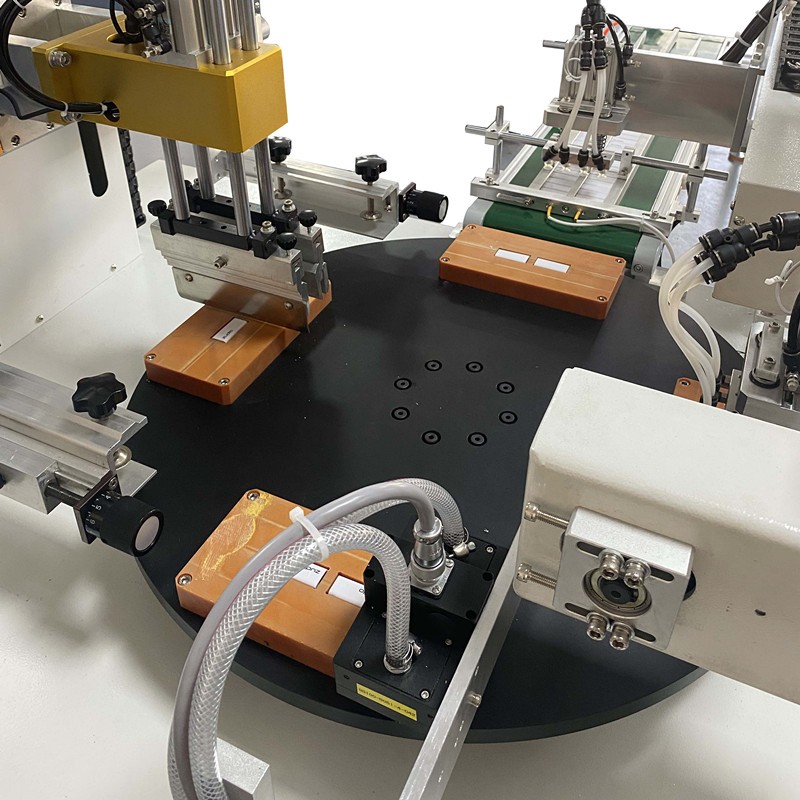

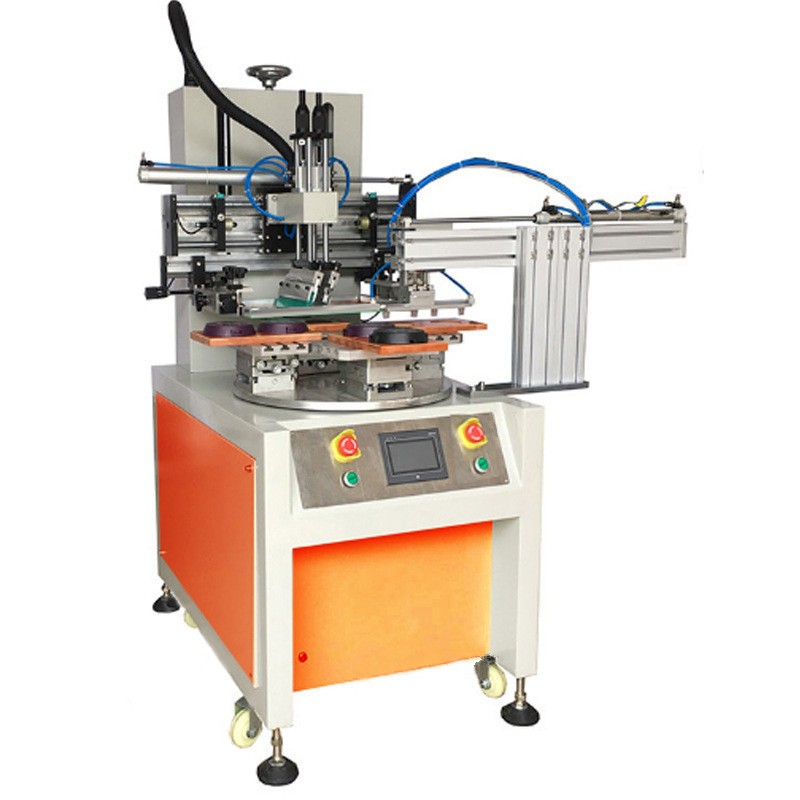

Four stations rotary screen printing machine
1. Feather
1. The screen lifting adopts Japanese Panasonic servo motor, combined with high-performance lead drive screw and precision linear guide rail, and the screen frame lifting adopts screw guidance, which makes the printing more smooth and higher printing accuracy.
2, the printing frame is made of one body pulled aluminum molding, simple structure. The tool holder is guided by cylinder and cross roller guide rail, stable and smooth, high precision. The scraper and ink knife are made of one aluminum drawing, which is simple in structure, convenient in use and stable in performance.

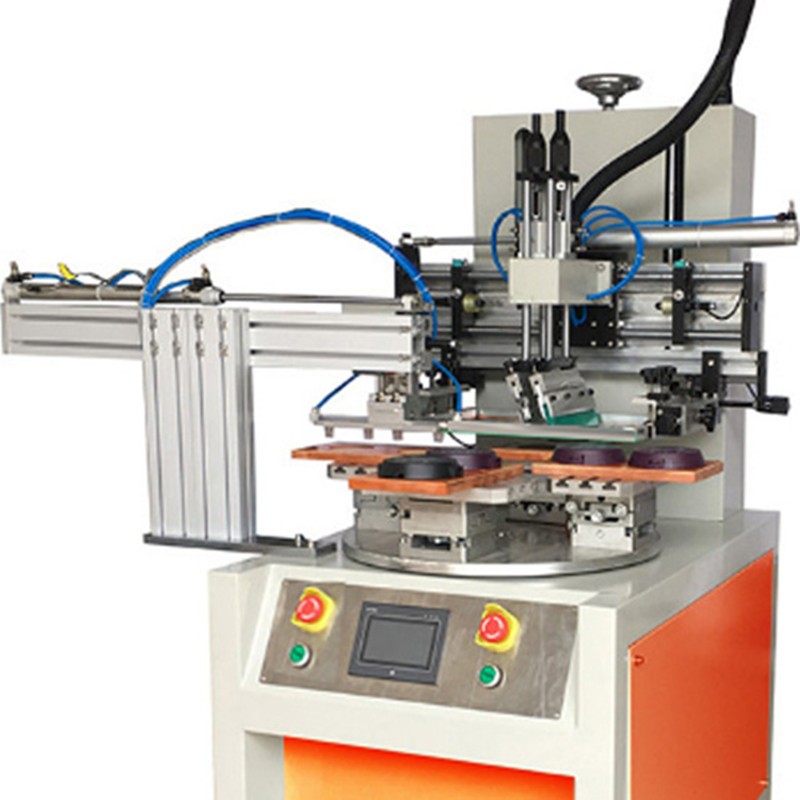

3, mechanical hand material: can be configured mechanical hand material, reduce productivity, improve production efficiency, the machine and the production line docking, direct feeding to the production line, can be customized according to customer requirements.

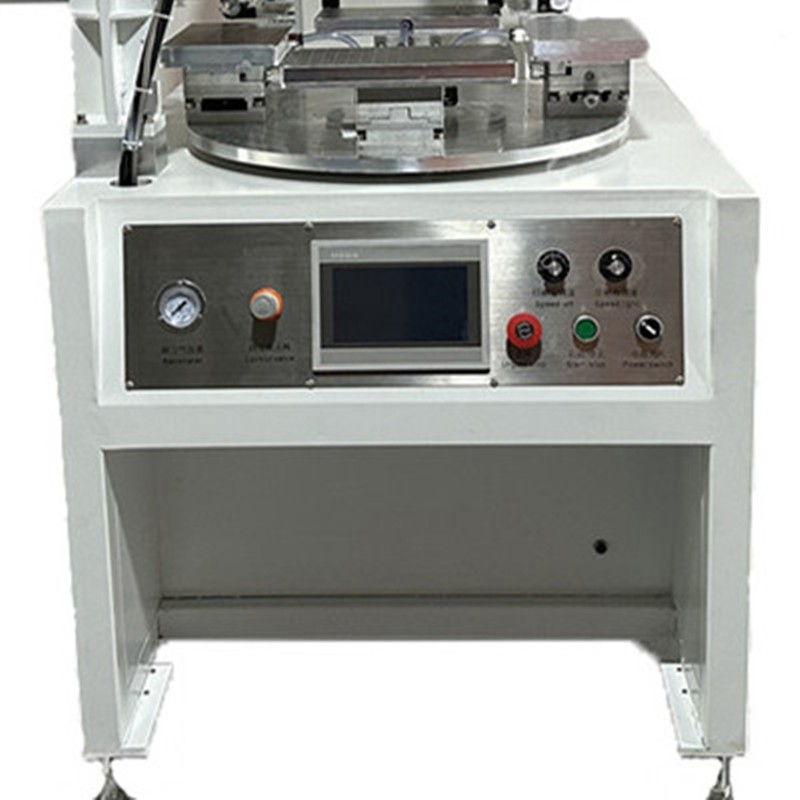

4, the use of advanced control Mitsubishi PLC control, human-machine interface digital control, can set a variety of functions and operating parameters, conducive to the operation of data and standard installation, humanization.
5, install safety rod, safety light curtain, carefully protect the operator's personal safety.
6, oil-free water filter pressure regulation group does not produce exhaust oil fog pollution, suitable for clean room use.
7, function program set storage function, keep remember, easy to use next time.
8, this equipment has 2, 4, 6, 8 stations optional, can increase the feeding manipulator.
2. Technology parameter
Model No. |
MC-2030C/R |
||
Printing colors |
1 color or multiple color |
Frame up and down stroke |
200mm |
Single cycle |
OK |
Scrape left and right stroke |
350mm |
Continuous movement |
OK |
vertical and horizontal adjusted |
±6mm |
Item counter |
Extraction method |
Vacuum adsorption or finger clamping |
|
Time delay in each part |
OK |
Lifting drive |
servo motor |
Printing speed |
2000pcs/c |
control system |
PLC |
Maximum frame size |
200*300mm |
controlling resistance |
DC24V |
Maximum printing area |
180*250mm |
Source resistant |
AC220V:50/60Hz |
Working plate size |
200*300mm |
Connection load |
202KW |
Turntable diameter |
845mm |
Working air pressure |
Mpa0.4-0.6Mpa |
Working position |
4 |
Air consumption/cycle |
3.0L |
Manipulator stroke |
500mm |
Size |
|
Maximum height of plate |
80mm |
Weight |
560kg |
FAQ
1.Q: What is the expected lifespan or durability of the product?
A: Our product has an expected lifespan of 8 years and is designed to withstand heavy use in industrial environments.
2. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 8 years and has a reputation for delivering high-quality products and excellent
customer service. We have worked with numerous clients in various industries.
3. Q: What is your company's policy on returns and refunds?
A: We have a flexible returns and refunds policy that allows customers to return products within 7 days of purchase for a full
refund or exchange. We also offer warranties on our products to ensure customer satisfaction.
4. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including ISO9001 and BSCI and ISO14001
