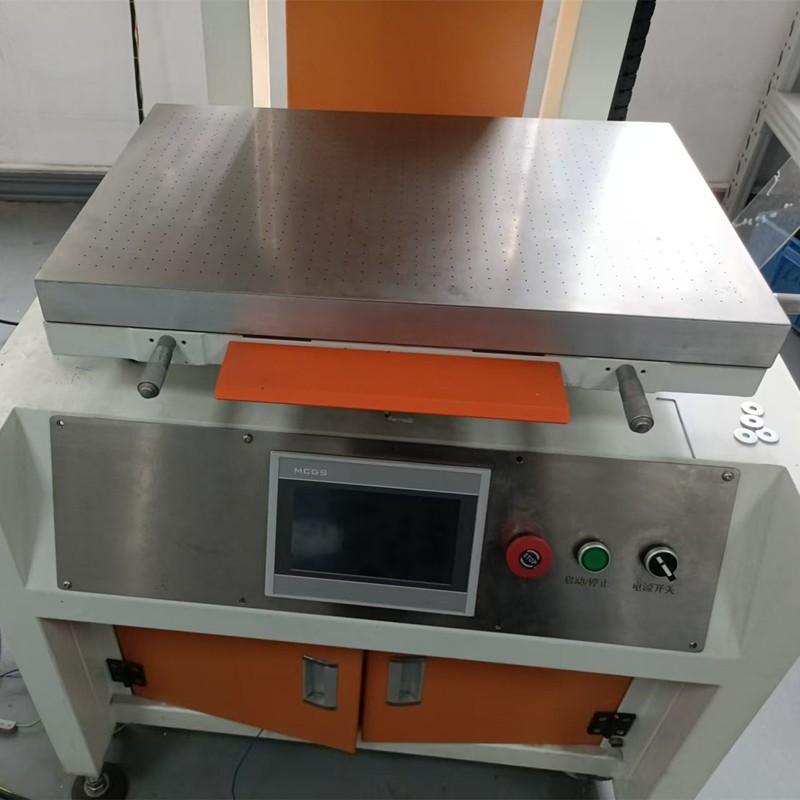

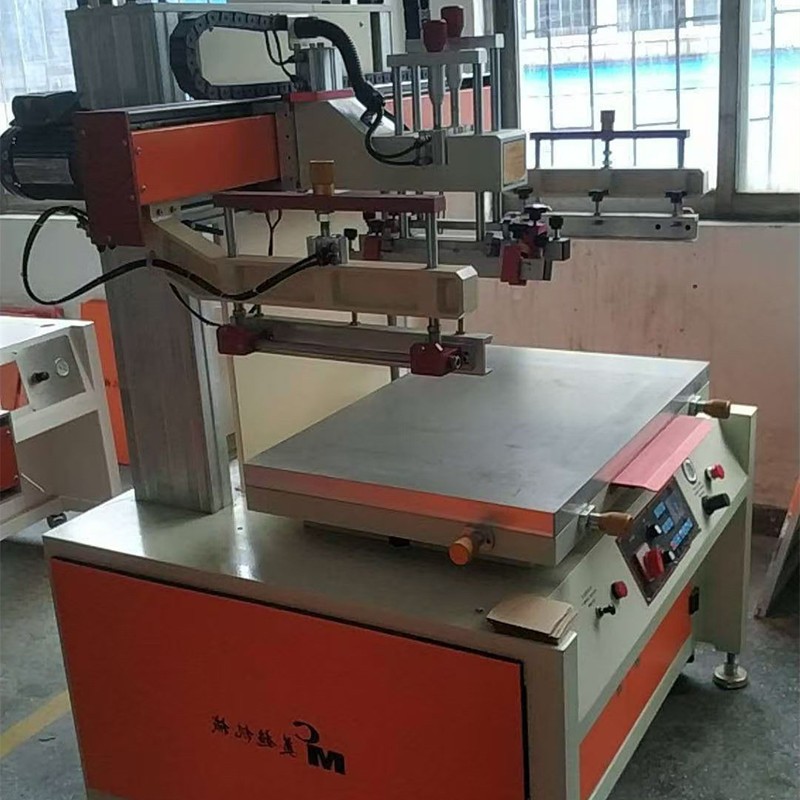

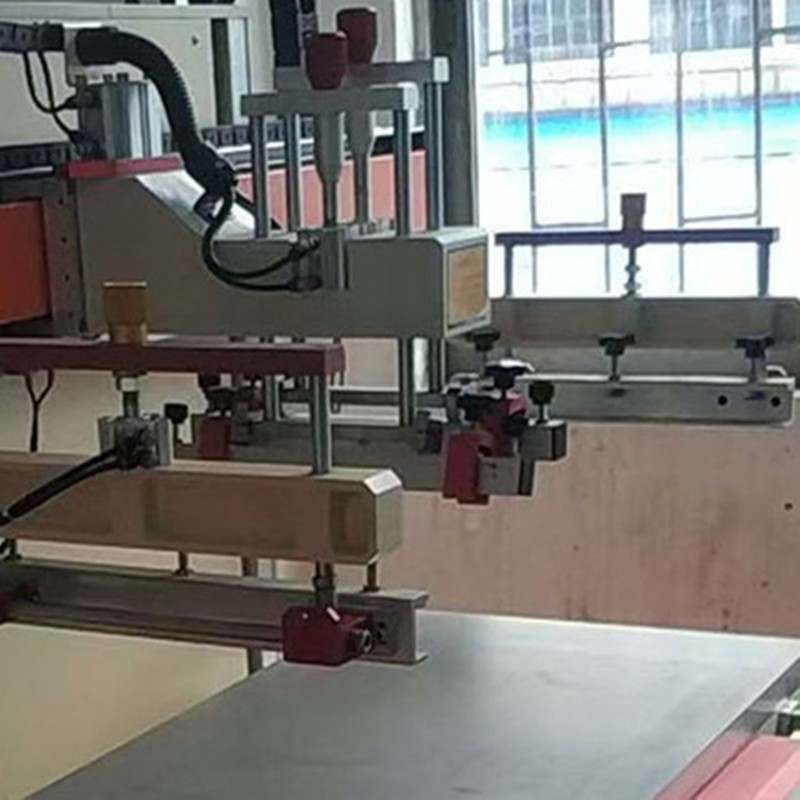

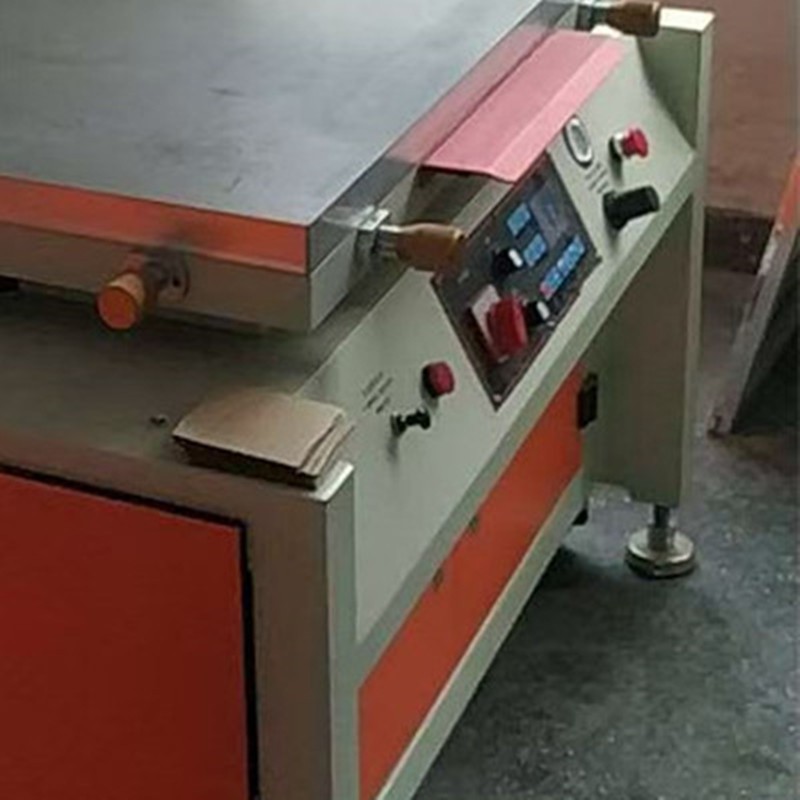

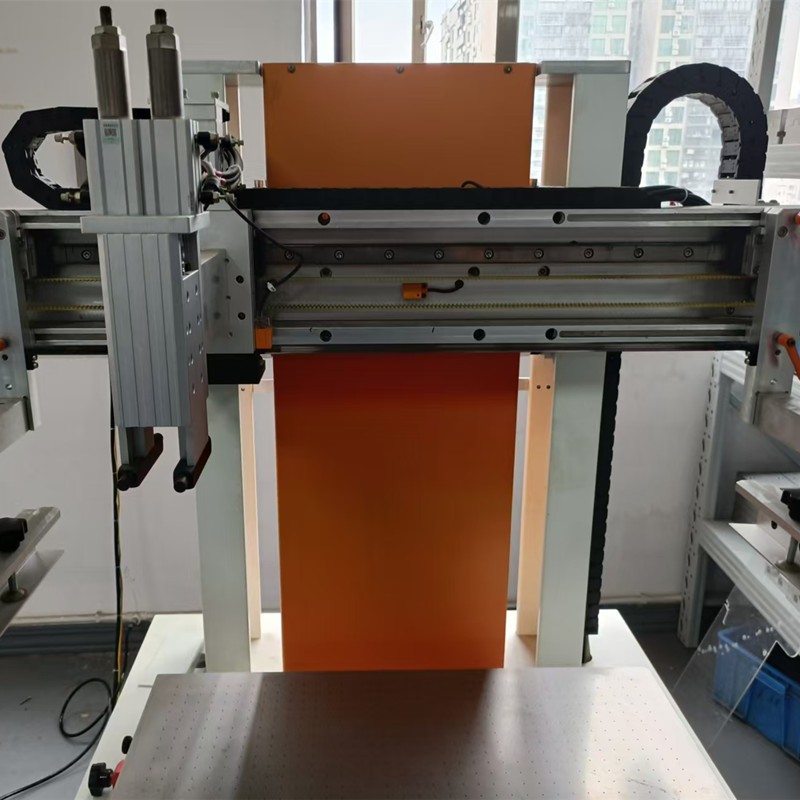

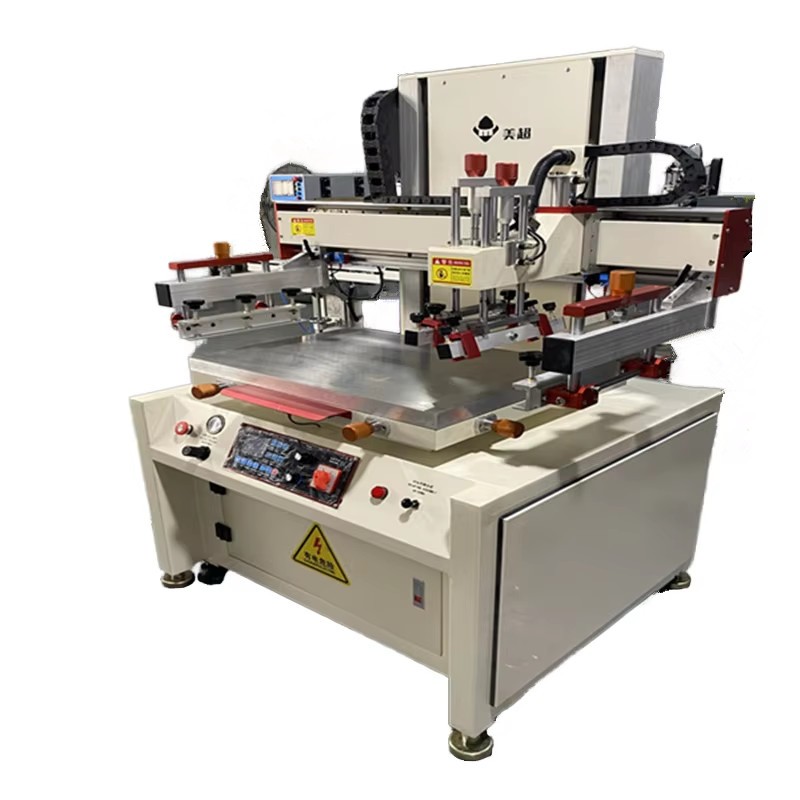

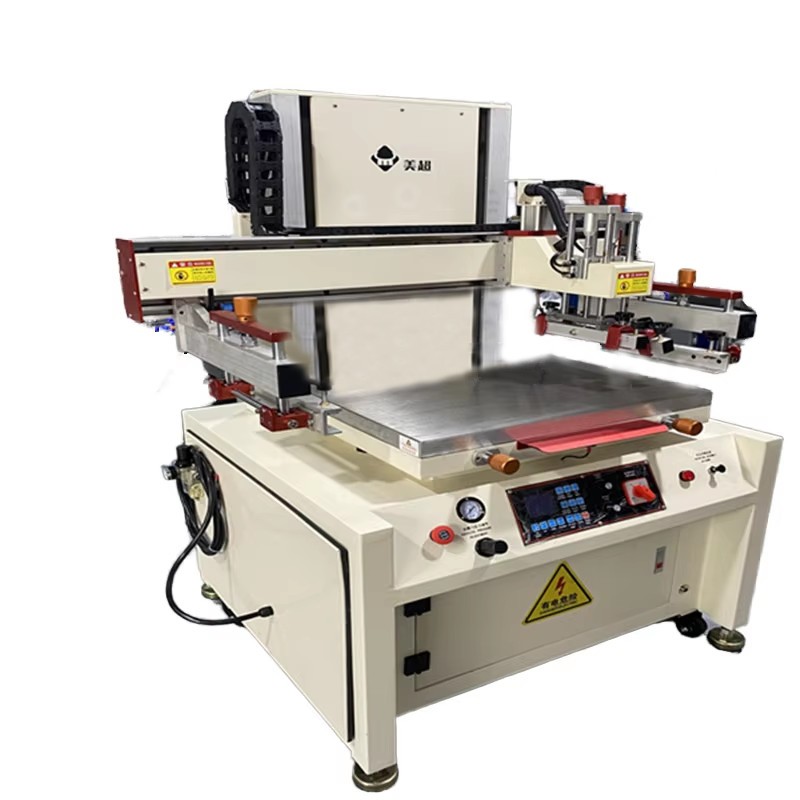

Semi-automatic large type desktop flat screen printing machine

Semi-automatic large type desktop flat screen printing machine

Product Item : MC-5070
Category： MC-5070 desktop flat screen printing machine
Printing area : 400*600mm
Printing speed: 1200pcs/h
printing color :1 color
Power：110/220V 50w
Attachment INQUIRY EMAIL

Large size Desktop flat screen printing machine

1. specification

Model No.：MC-5070

Printing area：400*600mm

Printing speed：1200pcs/h

Power：110/220V 50w

Size: 88*108*130cm

Weight：125KG

2. Application

It is suitable for the flat printing of glass, CD, nameplate, self-adhesive, credit card, ceramic paper, wooden toy puzzle and electronic industry PCB, SMT solder paste,

film switch, etc. It is also suitable for the flat printing of products with high overprinting precision based on gold and silver Paper card, metal sheet, PVC and so on.

3. Technology parameter

1. Microcomputer control each function action, high degree of automation

14. The mesh plate quick lifting device makes it quick and convenient to change the mesh plate

2. Automatic four-digit counter to count the number of prints

15. with long suction and automatic suction function

3. Fully cast aluminum body, with metal painting on the surface

16. The Angle of scraper and reinker can be adjusted

4. Double-column lifting structure, stable and precise height

17. Pneumatic mode: panel/foot switch

5. Left and right stroke can be adjusted

18.Left and right drive mode: pneumatic

6.Equipped with high-quality buffer to eliminate printing vibration

19. Up and down drive mode: pneumatic

7.Constant pressure device of scraper ensures stable pressure during printing

20. Scraper pressure control: constant pressure with pressure regulating valve

8. up and down stroke:150mm

21. Left and right stroke：500mm

9. The position of the frame can be adjusted front and back, left and right, and horizontally

22. Table front and back, left and right, rotation Angle fine turning

10. Suction stainless steel table, adsorption of various film products

23.Action mode : fully automatic/semi-automatic/manual

11. scraping size :10*50mm

24. Maximum height of the plate：150mm

12. The machine running speed is fast, stable, low noise

25.Work plate area:500*700mm

13.Original high quality components, quality assurance

26. Maximum frame size：500*950mm

FAQ

1.Q: What is the expected lifespan or durability of the product?

A: Our product has an expected lifespan of 8 years and is designed to withstand heavy use in industrial environments.

2. Q: What is your company's experience and reputation in the industry?

A: Our company has been in business for 8 years and has a reputation for delivering high-quality products and excellent
customer service. We have worked with numerous clients in various industries.

3. Q: What is your company's policy on returns and refunds?

A: We have a flexible returns and refunds policy that allows customers to return products within 7 days of purchase for a full
refund or exchange. We also offer warranties on our products to ensure customer satisfaction.

4. Q: Are there any certifications or standards that the product meets?

A: Yes, our product meets several industry certifications and standards, including ISO9001 and BSCI and ISO14001
