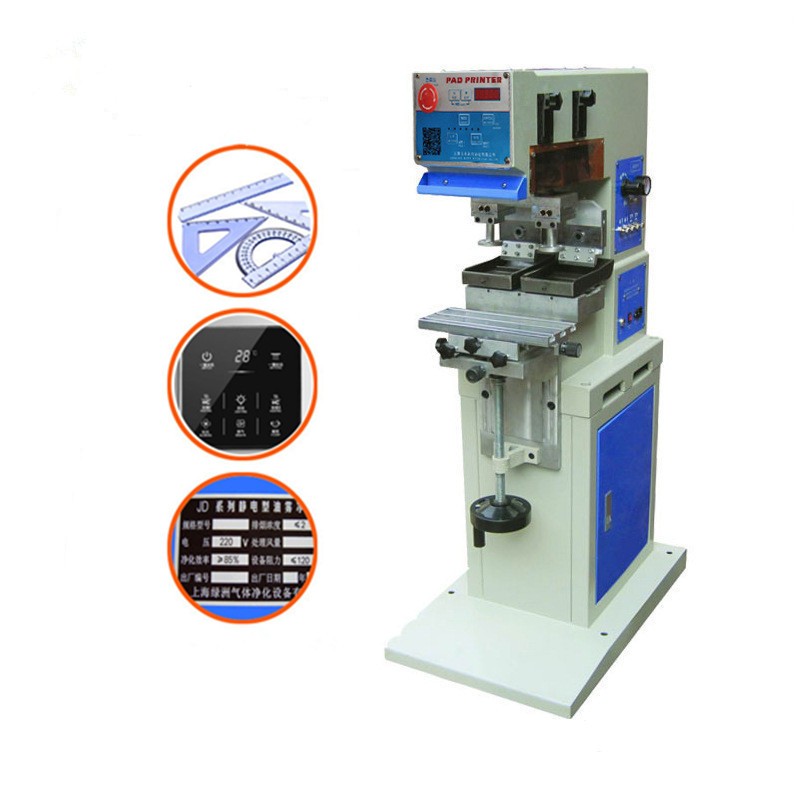

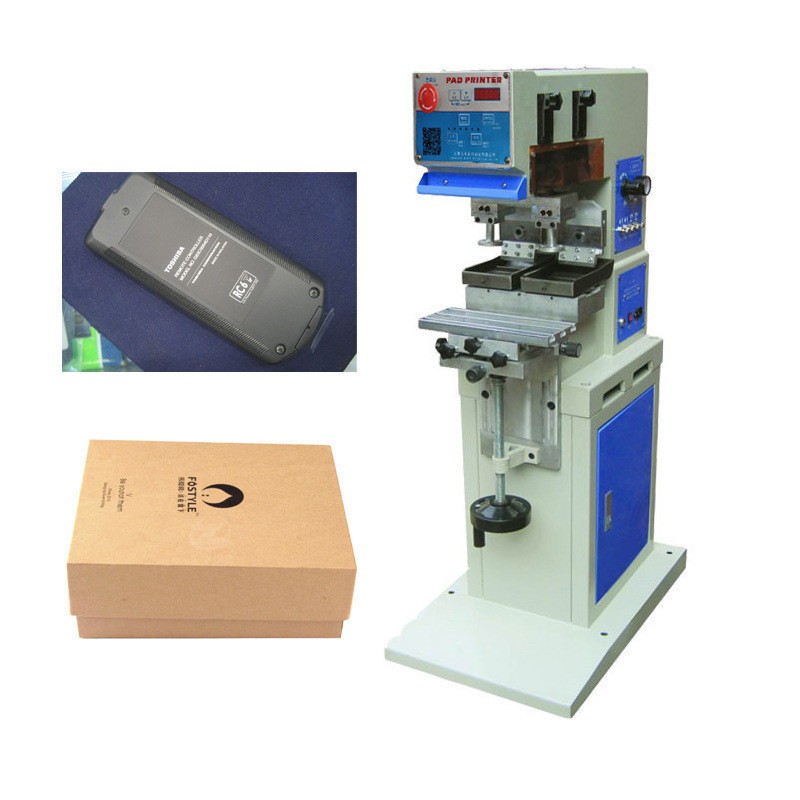

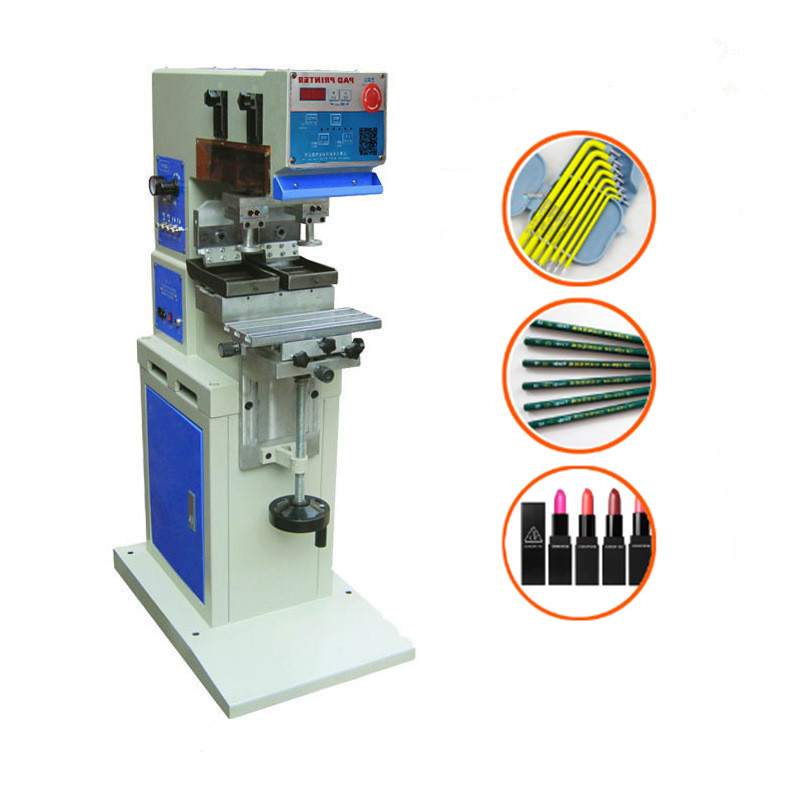

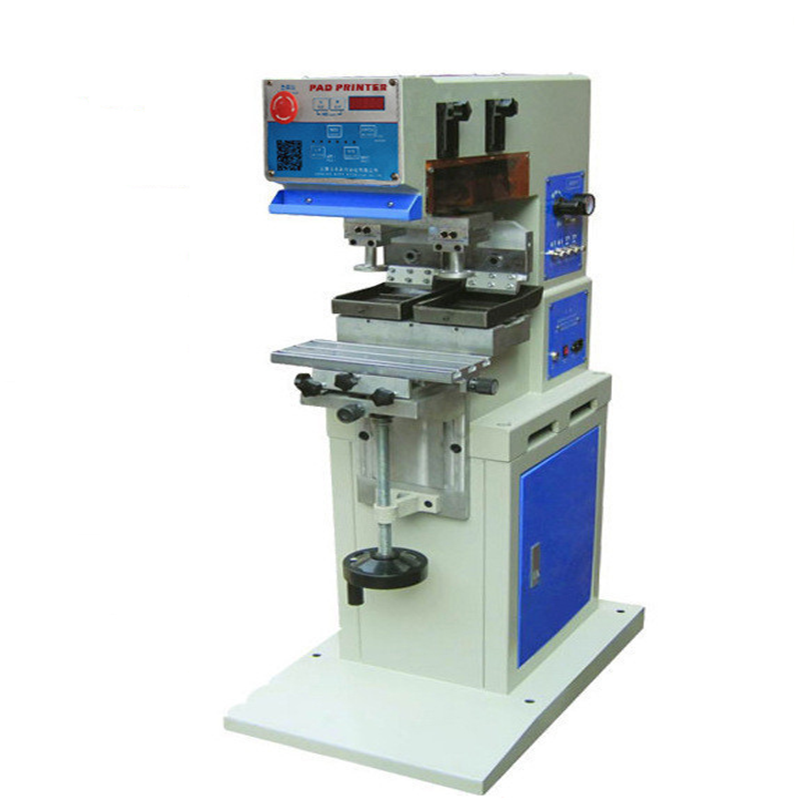

Two-Color Gravure Plate Printer with Double Printing Head Semi-Automatic for PVC Plastic Plate Both Side Printing

Technical Parameter

MC-4*4-2H

MC-4*6-2H

MC-4*8-2H

Model

Steel plate size

100*100mm

100*150mm

100*200mm

Max printing area

70*70mm

70*120mm

70*170mm

Up and down stroke

50mm

75mm

75mm

Left and right stroke

125mm

160mm

200mm

Glue adjustable angle

360°

360°

360°

Table adjustable angle

±5°

±5°

±5°

Work piece max height

100mm

200mm

200mm

Printing pressure

62.8kgf/cm

98kgf/cm

25kgf/cm

Printing speed

1800pcs/h

1400pcs/h

1200pcs/h

Power

220V 50-60mhz/30w

22V 50-60mhz/30w

22V 50-60mhz/30w

Size

57*41*115cm

72*46*138cm

95*63*150cm

Weight

45KG

100KG

180KG
