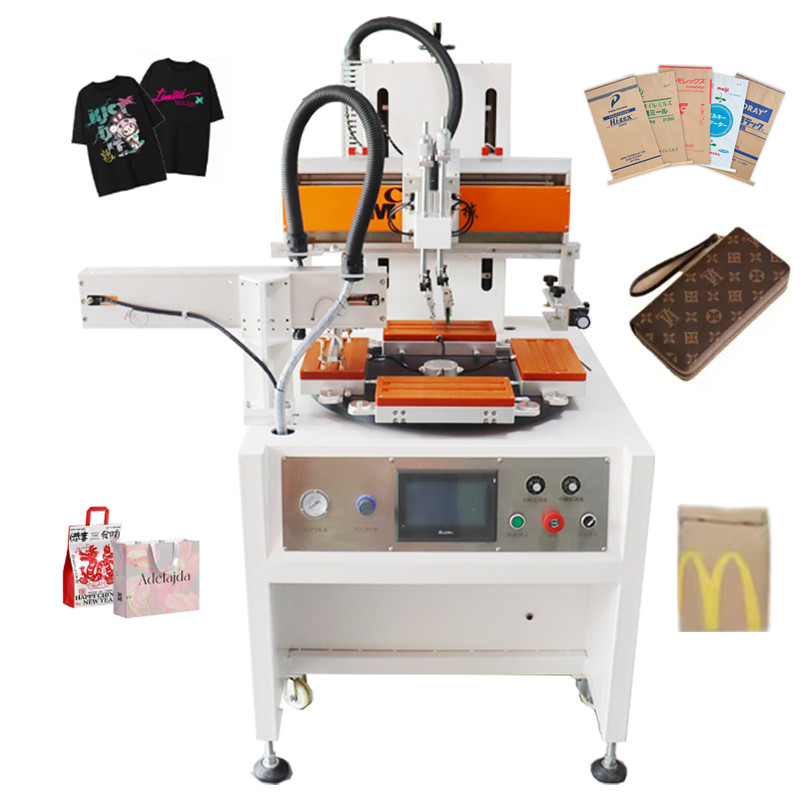

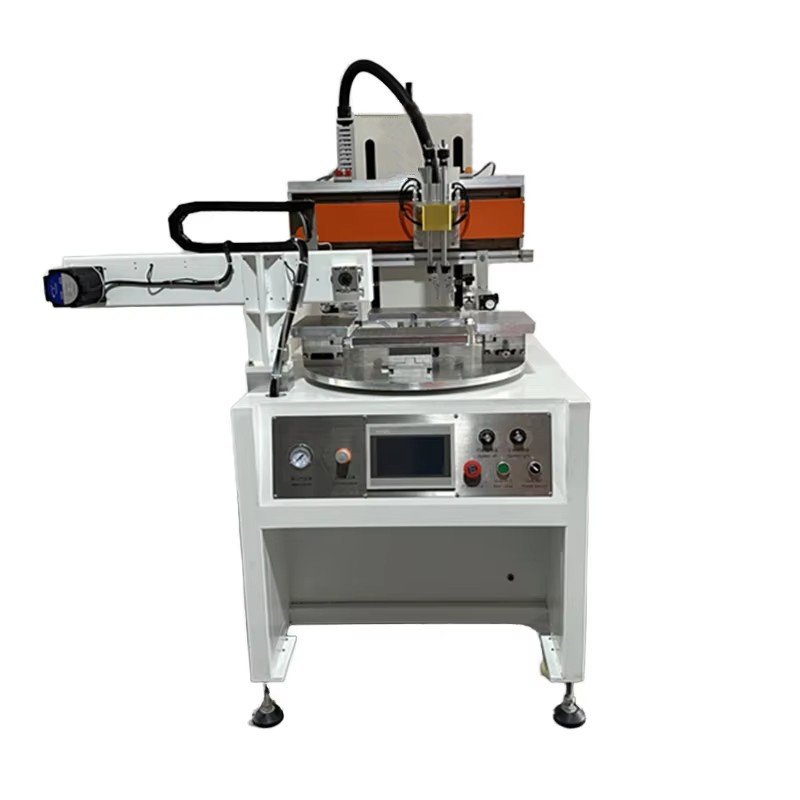

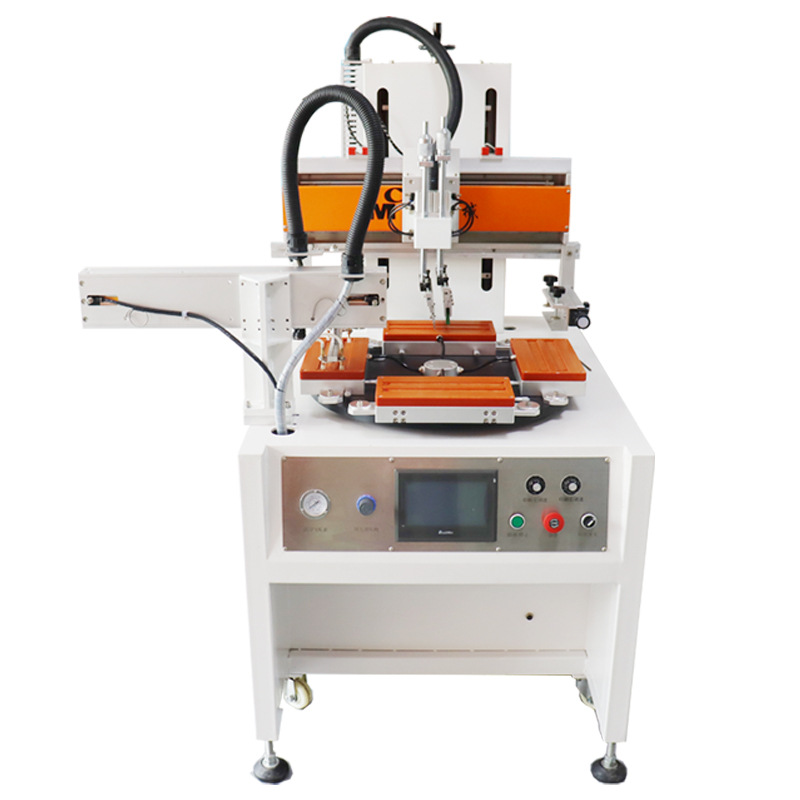

Automatic Flat Silk Screen Printing Machine 4 Station Carousel for Bracelet PVC Plate Single Color Paper/Card Serigraphy Printer

Model No.

MC-2030C/R

Printing colors

1 color or multiple color

Frame up and down stroke

200mm

Single cycle

OK

Scrape left and right stroke

350mm

Continuous movement

OK

vertical and horizontal adjusted

±6mm

Item counter

OK

Extraction method

Vacuum adsorption or finger clamping

Time delay in each part

OK

Lifting drive

servo motor

Printing speed

1300pcs/h

control system

PLC

Maximum frame size

300*650mm

controlling resistance

DC24V

Maximum printing area

180*250mm

Source resistant

AC220V：50/60Hz

Working plate size

200*300mm

Connection load

202KW

Turntable diameter

845mm

Working air pressure

Mpa0.4-0.6Mpa

Working station

4

Air consumption/cycle

3.0L

Manipulator stroke

500mm

Size

116*145*160cm

Maximum height of plate

80mm

Weight

560kg
