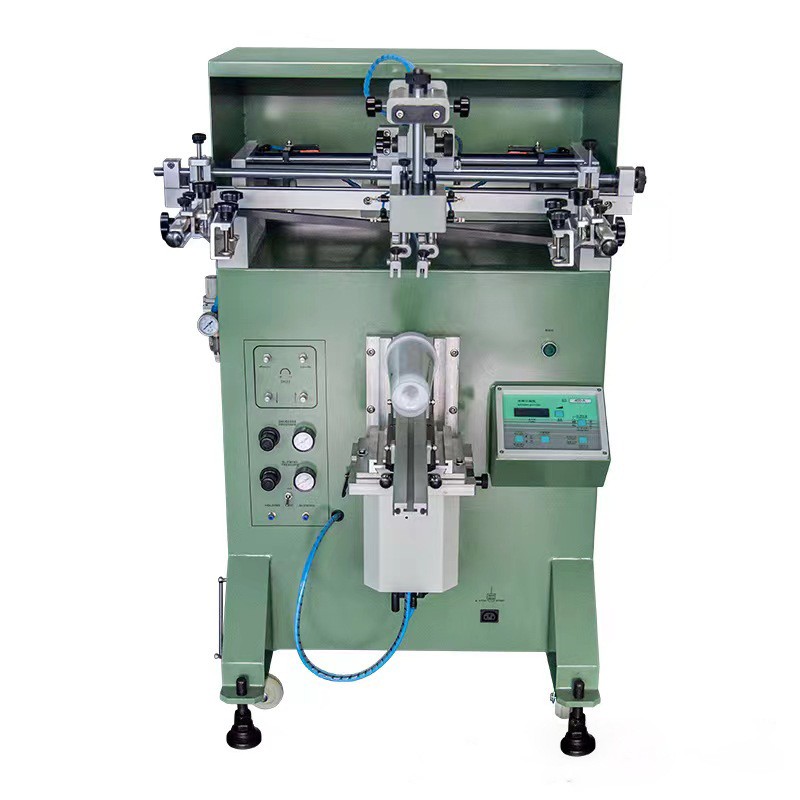

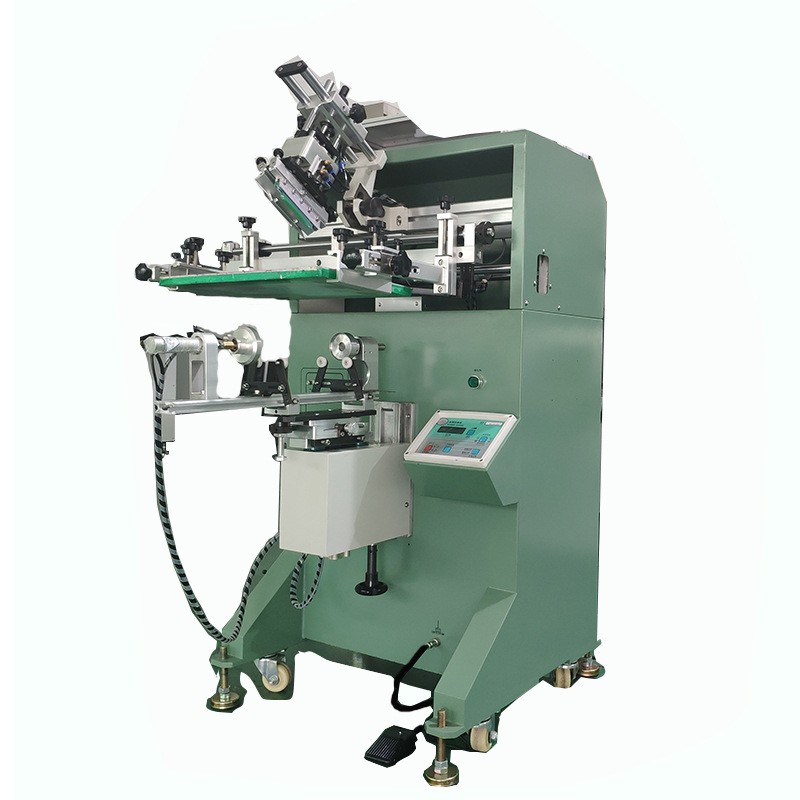

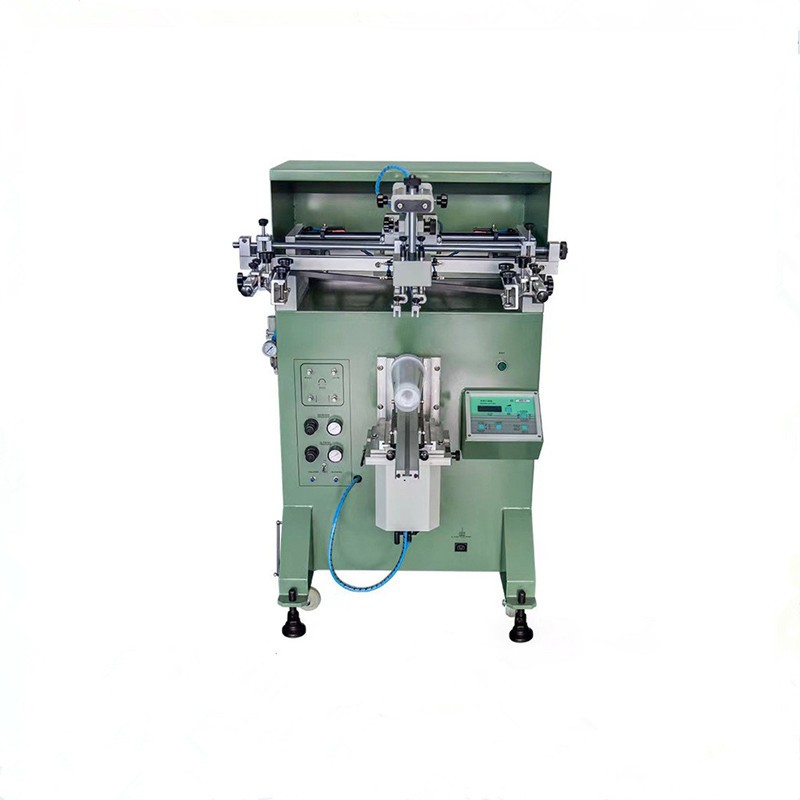

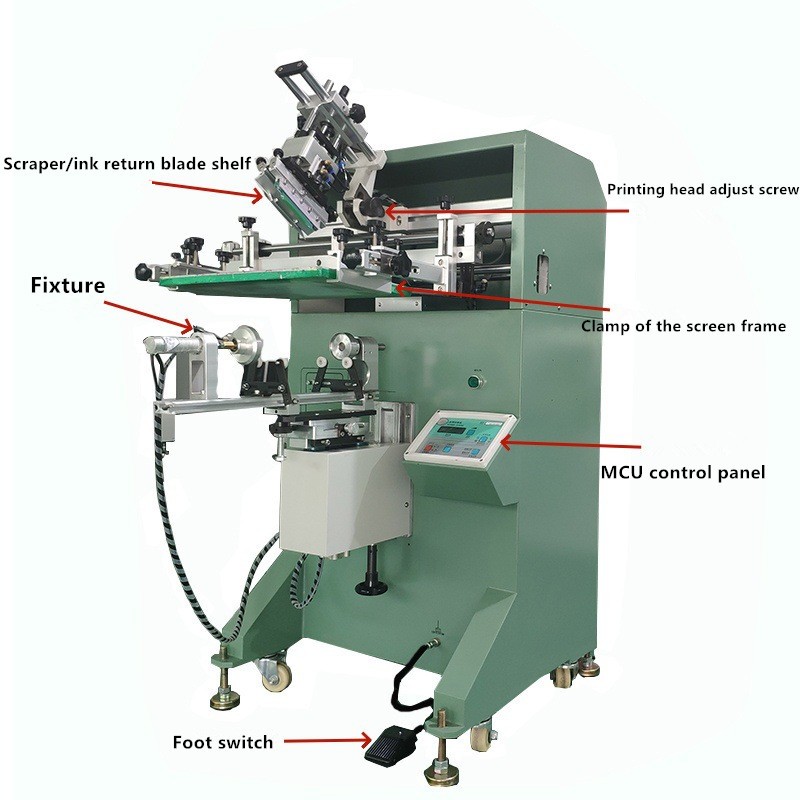

Semi-Automatic Curved Screen Printer Suit For Round Bottle And Plastic Paper Cup Juice Cup Milk tea Cup Printing Multiple Usage

1.  Specification

Model No.：MC-400

Printing Area：Φ120*350mm

Printing speed：1000pcs/h

Power： 220v 60Hz

Size: 90*85*130cm

Weight：110KG

Pheumatic pressure：5 -10bar

2.  Application

Small curved screen printing machine, the whole machine adopts the original Japanese and Taiwan pneumatic components, running speed, stable quality, low noise, color accuracy, such as cosmetics, chemical containers, food packaging and related flat surface products LOGO screen printing, due to small size, wide application, affordable, this machine is currently the most manufacturers use the model, It's a super economical machine.

3.  Technology parameter

1. Microcomputer control each function operation, high degree of automation, simple and convenient operation.

2. Built-in four-digit automatic counter.

3. It has the function of round and cone printing.

4. Automatic scraping, inking, table lifting, etc., not only simple operation, but also ensure the stability of printing quality.

5. Adjustable printing stroke and speed to meet different printing requirements.

6. Automatic balancing scraper to ensure balanced printing pressure.

7. Table and frame can be adjusted before and after, left and right, up and down, high printing precision, convenient and fast adjustment

8. The part of the scraper can be lifted independently, and the replacement and cleaning of the net frame are easy and convenient

9. Maximum printing area: 360×260mm

10. Maximum frame size: 400×600mm

11. Printing length: <280mm

12. Printing taper: positive <15 degrees negative <7 degrees
